Integrated Power Designs

Integrated Power Designs manufactures AC-DC & DC-DC Power Supplies. Their USA-produced power products are sold into a variety of industries including Medical, Automotive, Telecommunications and Test and Measurement. Their products are shipped throughout the world with global approvals.

IPD was founded April of 1985. At that time the company was located in Milltown, NJ, where it began manufacturing DC to DC Power Supplies. Then in March of 1986, the company relocated to larger facilities in Lawrenceville, NJ. Over the next 6 years, the product line was expanded and sales increased. The need for a larger production area was essential to the growth of IPD. On March 1, 1992, IPD opened its doors for production at their new Wilkes-Barre, PA, location. By 1996, the Company outgrew its present building and in 1997, added 45,000 sq. ft. to the existing building.

In recent years, Integrated Power Designs has expanded its range of power supplies from 25W to 300W utilizing the most advanced manufacturing techniques. All of IPD's products are designed and manufactured from their Wilkes-Barre, PA facility.

DC/DC :: Open Frame | Enclosed | U-Chassis

Series Datasheet Power Input Range Outputs Dimensions Features
DC4-45 DC4-45 Download » 45 36-60Vdc 1-3 Outputs
3.3-12Vdc
3.00 x 5.00 x 1.12 in
76 x 127 x 28 mm

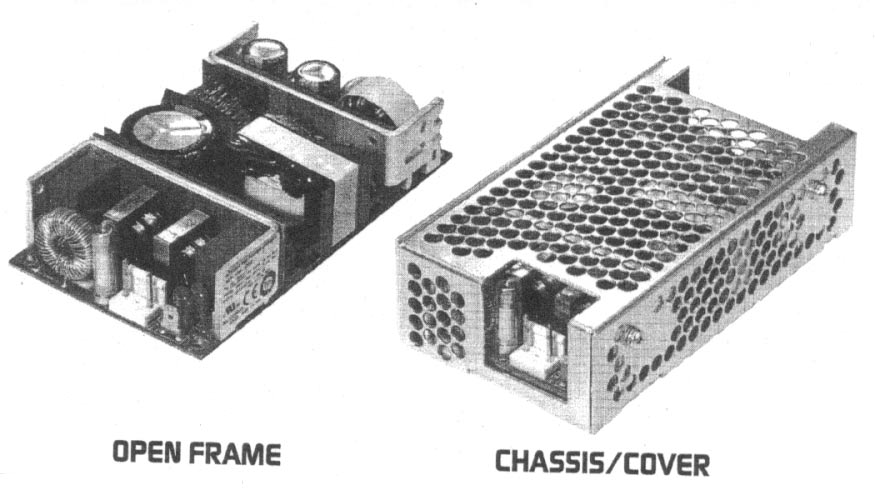

Open Frame or Optional Chassis Cover
DC2-70 DC2-70 Download » 70 18-36 VDC Single, Dual, Triple or Quadruple 2.5 x 4.5 x 1.2 inches Open Frame or Chassis/Cover
DC4-70 DC4-70 Download » 70 36 - 72 VDC Sinlge, Dual, Triple, or Quadruple 2.5 x 4.5 x 1.2 inches Open Frame or Chassis/Cover
DC2-110 DC2-110 Download » 110 18-36 VDC Sinlge, Dual, Triple, or Quadruple 3 x 5 x 1.3 inches Open Frame or Chassis/Cover
DC4-110 DC4-110 Download » 110 36 - 72 VDC Single, Dual, Triple or Quadruple 3 x 5 x 1.3 inches Open Frame or Chassis/Cover
DC2-150 DC2-150 Download » 150 18-36 VDC Single, Dual, Triple or Quadruple 3.8 x 6 x 1.3 inches Open Frame or Chassis/Cover
DC4-150 DC4-150 Download » 150 36 - 72 VDC Single, Dual, Triple or Quadruple 3.8 x 6 x 1.3 inches Open Frame or Chassis/Cover
DC2-185 DC2-185 Download » 185 18-36 VDC Single, Dual, Triple or Quadruple 4.2 x 7.0 x 1.5 inches Open Frame or Chassis/Cover
DC4-185 DC4-185 Download » 185 36 - 72 VDC Single, Dual, Triple or Quadruple 4.2 x 7 x 1.5 inches Open Frame or Chassis/Cover

AC/DC Power Supplies :: Open Frame | Enclosed | U-Chassis

Series Datasheet Power Input Range Outputs Dimensions Features
SRP-25 SRP-25 Download » 25 85-264 VAC Single, Dual or Triple 2.25 x 4.0 x 0.96 inches Open Frame
SRP-35A SRP-35A Download » 30 85-264 VAC Single, Dual, Triple or Quadruple 3"x 6"x 2" Enclosed
SRP-40A SRP-40A Download » 40 85-264 VAC Sinlge, Dual, Triple, or Quadruple 2.50 x 4.25 x 1.2 inches Open Frame or Chassis/Cover
SRW-45 SRW-45 Download » 45 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3 x 5 x 1.25 inches Open Frame or Chassis/Cover
GRN-45M Series GRN-45M Series Download » 45 85-264 VAC Sinlge, Dual, Triple, or Quadruple 2.5 x 4.25 x 1.0 inches U Bracket or Chassis/Cover
GRN-60S Series GRN-60S Series Download » 60 85-264 VAC Single 2.0 x 3.0 x 1.0 inches Enclosed
SRW-65 SRW-65 Download » 65 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4 x 6 x 1.1 inches Open Frame or Chassis/Cover
REL-70 REL-70 Download » 70 85-264 VAC Single, dual, Triple, or Quadruple 2.5 x 4.5 x 1.2 inches Open Frame or Chassis/Cover
GRN-80M Series GRN-80M Series Download » 80 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3.0 x 5.0 x 1.0 inches U Bracket or Chassis/Cover
GRN-80S Series GRN-80S Series Download » 80 85-264 VAC Single 2.5 x 4.25 x 1.0 inches Enclosed
SRW-100 SRW-100 Download » 100 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3.3 x 5 x 1.5 inches Open Frame or Chassis/Cover
NXT-100 NXT-100 Download » 100 85-264 VAC Single 2.5 x 4.5 x 1 inches Open Frame or Chassis/Cover
GRN-110M Series GRN-110M Series Download » 110 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3.0 x 5.0 x 1.0 inches U Bracket or Chassis/Cover
GRN-110S Series GRN-110S Series Download » 110 85-264 VAC Single 3.0 x 5.0 x 1.25 inches Enclosed
REL-110 REL-110 Download » 110 85-264 VAC Single, Dual, Triple, or Quadruple 3 x 5 x 1.3 inches Open Frame or Chassis/Cover
SRW-115 SRW-115 Download » 115 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4.25 x 7 x 1.25 inches Open Frame or Chassis/Cover
CE-150 CE-150 Download » 150 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4.0 x 7.0 x 1.75 inches U Bracket or Chassis/Cover
REL-150 REL-150 Download » 150 85-264 VAC Single, Dual, Triple, or Quadruple 4.2 x 7 x 1.5 inches Open Frame or Chassis/Cover
NXT-175 NXT-175 Download » 175 85-264 VAC Single 3 x 5 x 1.25 inches Open Frame or Chassis/Cover
REL-185 REL-185 Download » 185 85-264 VAC Single, Dual, Triple or Quadruple 4.2 x 7 x 1.5 inches Open Frame or Chassis/Cover
CE-225 CE-225 Download » 225 85-264 VAC Single, Dual, Triple or Quadruple 4.75 x 8.0 x 2.0 inches U Bracket
NXT-225 NXT-225 Download » 225 85-264 VAC Single 3.3x 5x 1.5 inches Open Frame or Chassis/Cover
CE-300 CE-300 Download » 300 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4.9x 8.5x 1.95 inches Enclosed
NXT-325 NXT-325 Download » 325 85-264 VAC Single 3.9 x 6 x 1.5 mm Open Frame
NXT-400 NXT-400 Download » 400 85-264 VAC Single 3.9x 8x 1.5 inches Open Frame or Chassis/Cover
AQFV480U AQFV480U Download » 480 90-264 VAC or 120-370 VDC Single 7 x 4.2 x 1.78 in
177.8 x 106.5 x 45.0 mm )
AC/DC Open Power Supply

DC/DC :: PCB Mount

Series Datasheet Power Input Range Outputs Dimensions Features
VXB20(W) Series VXB20(W) Series Download » 20 2:1 Input Nominal 12VDC: 9~18
24VDC: 18~36
28VDC: 18~36
4:1 Input Nominal 24VDC: 15~55
28VDC: 15~55
Single 50.8 X 25.4 X 12.7 mm (2 X 1 X 0.5 Inch) DIP
VDB30 Series VDB30 Series Download » 30 2:1 INPUT 12VDC: 9~18VDC
24VDC: 18~36VDC
48VDC: 36~72VDC
Single 50.8 X 25.4 X 11.20 mm (2.00 X 1.6 X 0.4 4Inch) Enclosed

AC/DC Power Supplies :: Rackmount

Series Datasheet Power Input Range Outputs Dimensions Features
SYS1601 Series Open 24W max SYS1601 Series Open 24W max Download » 0 (90~264)VAC 3000ms max
SYS1546 Series Open 36W max SYS1546 Series Open 36W max Download » 0 (90~264)VAC 3000 ms max Open frame power supply,single output Wide range input (90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For I. T. E use only + RoHS conform
SYS1100 PD30W max SYS1100 PD30W max Download » 0 (90~264)VAC/(47~63)Hz 115V/60Hz, 230V/50Hz For Telecom Products/ Enclosure / STB Wall-mount power supply, single output. Wide range input(90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For L.T.E+AV+ROHS conform. PSU housing ready to use in country: USA, Japan(type W2), Europe(type
SYS1542 Series Open 12W max SYS1542 Series Open 12W max Download » 12
SYS1621-PD20W max SYS1621-PD20W max Download » 20 (90~264)VAC/(47~63)Hz 115V/60Hz, 230V/50Hz For Telecom Products/ Enclosure / STB Wall-mount power supply, single output. Wide range input(90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For L.T.E+AV+ROHS conform. PSU housing ready to use in country: USA, Japan(type W2), Europe(type
SYS1520 Series Open 65W max SYS1520 Series Open 65W max Download » 65 (90~264)VAC/(47~63)Hz Open frame power supplu,single output Wide range input (90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For I. T. E use only + RoHS conform
SYS1102 PD65W max SYS1102 PD65W max Download » 65 (90~264)VAC/(47~63)Hz 115V/60Hz, 230V/50Hz For Telecom Products/ Enclosure / STB Wall-mount power supply, single output. Wide range input(90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For L.T.E+AV+ROHS conform. PSU housing ready to use in country: USA, Japan(type W2), Europe(type
SYS1575 Series Open 90W max SYS1575 Series Open 90W max Download » 90 (90~264)VAC/(47~63)Hz
SYS1101 PD100W max SYS1101 PD100W max Download » 100 (90~264)VAC, 115V/60Hz, 230V/50Hz For Telecom Products/ Enclosure / STB Wall-mount power supply, single output. Wide range input(90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For L.T.E+AV+ROHS conform. PSU housing ready to use in country: USA, Japan(type W2), Europe(type
SYS1670 Series Open 200W max SYS1670 Series Open 200W max Download » 200 (90~264)VAC/(47~63)Hz Open frame power supplu,single output Wide range input (90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For I. T. E use only + RoHS conform
SYS1667 Series Open 500W max SYS1667 Series Open 500W max Download » 500 (90~264)VAC/(47~63)Hz Open frame power supplu,single output Wide range input (90~264)VAC/(47~63)Hz. Overload over voltage & short protection. For I. T. E use only + RoHS conform
