Adapter Tech

Series Datasheet Power Input Range Outputs Dimensions Features

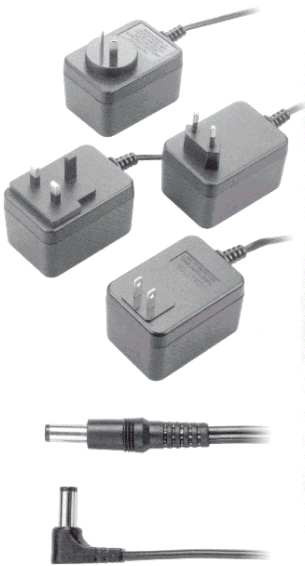

Adapter-5W-Wall Adapter-5W-Wall Download » 5 100-240 VAC Single U- L 2.3 x W 1.7 x H 1.0 inches
E- L 2.04 x W 1.1 x H 2.4 inches
B- L 2.0 x W 2.0 x H 1.9 inches
A- L 2.04 x W 1.7 x H 2.0 inches
Wall Mount
Adapter-10W Adapter-10W Download » 10 100~240 VAC Single: 3.3V, 4.5V, 5V,
6V, 7.5V, 8.4V, 9V 12V, 13.5V, 15V, 18V, 24V
U- 72x 34x 59mm
E- 72x 34x 80mm
B- 72x 50x 72mm
Wall Mount
Adapter-LD12 Adapter-LD12 Download » 12 100-120 / 190-240 VAC Single 5-30V Varies Wallmount / Desktop / Open Frame Option

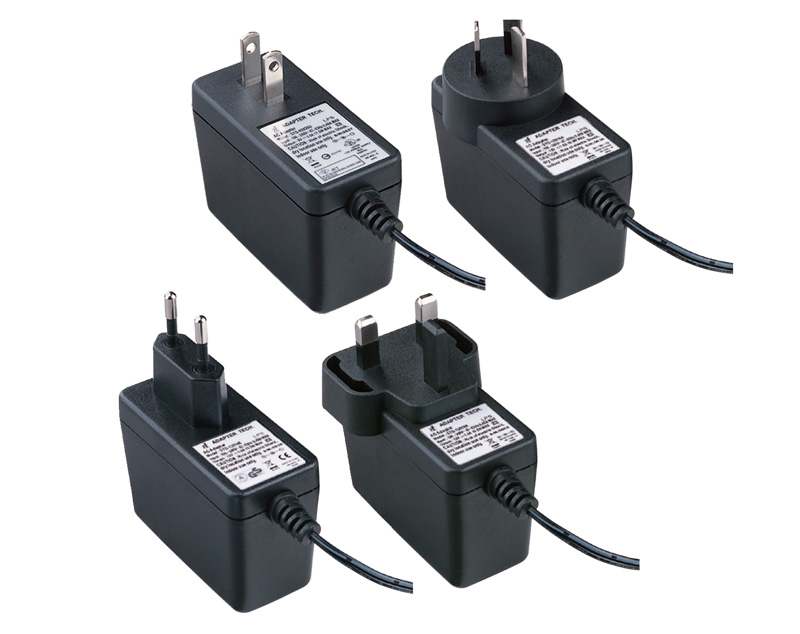

Adapter-12W-Wall Adapter-12W-Wall Download » 12 100-240 VAC Single U: L 2.8 x W 1.3 x H 2.3 inches
E- L 2.8 x W 1.3 x H 3.1 inches
B- L 2.8 x W 2.0 x H 2.8 inches
C- L 2.8 x W 1.3 x H 2.3 inches
A- L 2.8 x W 1.3 x H 2.0 inches
Wall Mount
Adapter-12W-Wall/Medical Adapter-12W-Wall/Medical Download » 12 100-240 VAC Single Wall Mount/Medical
Adapter-18W-Desk Adapter-18W-Desk Download » 13 100-264 VAC Single P: L 3.9 x W 1.96 x H 1.29 inches
A: L 3.5 x W 1.96 x H 1.3 inches
Desktop
Adapter-LD15 Adapter-LD15 Download » 15 100-120 / 190-240 VAC Single 5-30V 103x50x27mm Desktop
Adapter-18W-Wall Adapter-18W-Wall Download » 18 100-240 VAC Single U: L2.8 x W1.3 x H2.7 inches
E & K: L2.8 x W1.3 x H3.5 inches
B: L2.8 x W2 x H3.2 inches
A: L2.8 x W1.6 x H3.07 inches
C: L2.8 x W1.3 x H2.7 inches
Wallmount
Adapter-18W-Change Adapter-18W-Change Download » 18 100-240 VAC Single U/C: L 2.8 x W 1.3 x H 2.7 inches
E: H 2.8 x W 1.3 x H 3.5 inches
B: L 2.8 x W 1.9 x H 3.1 inches
A: L 2.8 x W 1.6 x H 3.07 inches
V: L 3.07 x W 2.05 x H 1.6 inches
Wall Mountable
Adapter-18W-Change Adapter-18W-Change Download » 18 100-240VAC Single 4.5V, 5V, 5.9V, 7V, 7.5V, 9V, 10V, 12V, 13.5V, 15V, 16V, 18V, 20V, 24V L78 x W52 x H41 (mm) Wall Mountable
Adapter-20W-Wall Adapter-20W-Wall Download » 20 100-240 VAC Single Wallmount
Adapter-24W-Wall Adapter-24W-Wall Download » 24 100-240 VAC Single U/C: L 2.8 x W 1.3 x H 2.7 inches
E: H 2.8 x W 1.3 x H 3.5 inches
B: L 2.8 x W 1.9 x H 3.1 inches
A: L 2.8 x W 1.6 x H 3.07 inches
V: L 3.07 x W 2.05 x H 1.6 inches
Wall Mountable
Adapter-24-Desk Adapter-24-Desk Download » 24 100-240 VAC Single P: L 3.9 x W 1.96 x H 1.29 inches
A: L 3.5 x W 1.96 x H 1.3 inches
Desktop
Adapter-30W-Small Adapter-30W-Small Download » 30 100-240VAC Single 8.4V, 9V, 12V, 15V 88x50x34mm Desktop
Adapter-30/40W-Netbook Adapter-30/40W-Netbook Download » 30 100-240VAC Single 18.0V, 18.5V, 19.0V, 19.5V, 20.0V 87.5x 35x 26.5mm Desktop
30 Watt Adapter 30 Watt Adapter Download » 30 100-240 VAC Single L 3.93 x W 1.96 x H 1.3 inches Desktop/Medical
Adapter-30W Adapter-30W Download » 30 100-240VAC Single 5V, 9V, 12V, 15V, 24V 95x 58x 34mm Desktop
Adapter-DualOutput Adapter-DualOutput Download » 35 100-240VAC Dual 5V / 12V 95x58x34mm Desktop
Adapter-35W-Desk Adapter-35W-Desk Download » 35 100-240 VAC Dual L 3.7 x W 2.3 x H 1.34 inches Desktop
Adapter-36W-Change Adapter-36W-Change Download » 36 100-240 VAC Single U: L 3.1 x W 1.3 x H 2.9 inches
E: L 3.1 x W 1.3 x H 3.7 inches
B: L 3.1 x W 1.92 x H 3.4 inches
A: L 3.1 x W 1.6 x H 3.23 inches
V: L 3.1 x W 1.3 x H 2.6 inches
Wall Mount
Adapter-36W-Desk Adapter-36W-Desk Download » 36 100-240 VAC Single L 3.97 x W 2.0 x H 1.38 inches Desktop
Adapter-36W-Wall Adapter-36W-Wall Download » 36 100-240 VAC Single U: L 3.1 x W 1.34 x H 2.91 in
E: L 3.1 x W 1.34 x H 3.7 in
B: L 3.1 x W 1.93 x H 3.39 in
A: L 3.1 x W 1.61 x H 3.23 in
V: L 3.1 x W 1.34 x H 2.6 in
Wall Mountable
Adapter-40W Adapter-40W Download » 40 100-240VAC Single 9V, 12V 115x53x38mm Desktop
Adapter-50W-Desk Adapter-50W-Desk Download » 50 100-240VAC Single 9V, 12V, 15V, 18V, 19V, 20V, 24V, 48V 115x53x38mm Desktop
ATS065 ATS065 Download » 65 100-240VAC Single 12V, 15V, 16V, 18V, 19V, 20V, 24V, 30V, 32V, 48V 115x53x38mm Desktop
Adapter-65W-Small Adapter-65W-Small Download » 65 100-240 VAC Single 4.25 x 1.8 x 1.26 inches Desktop
Adapter-65W-Desk Adapter-65W-Desk Download » 65 100-240 VAC Single L 4.5 x W 2.08 x H 1.5 inches Desktop
Adapter-90W Adapter-90W Download » 90 100-240 VAC Single C6: L 5.5 x W 2.4 x H 1.4 inches
C14: L 5.9 x W 2.5 x H 1.4 inches
Desktop
Adapter-90W-Small Adapter-90W-Small Download » 90 100-240 VAC Single L 5.07 x W 2.12 x H 1.25 inches Desktop
Adapter-90W-2USB Adapter-90W-2USB Download » 90 100-240VAC Single 12V, 15V, 16V, 18V, 19V, 20V, 24V 139x 61x 36mm Desktop
Adapter-90W-Desk Adapter-90W-Desk Download » 90 100-240 VAC Single L 6.6 x W 2.6 x H 1.5 inches Desktop
Adapter-120W-Desk Adapter-120W-Desk Download » 120 100-240 VAC Single L 6.6 x W 2.6 x H 1.5 inches Desktop
Adapter-120W-Desk/Medical Adapter-120W-Desk/Medical Download » 120 100-240 VAC Single L 6.9 x W 2.9 x H 1.6 inches Desktop/Medical
Adpater-160W-Desk/Medical Adpater-160W-Desk/Medical Download » 160 100-240 VAC Single L 7.2 x W 3.2 x H 1.6 inches Desktop/Medical
Adapter-160W-Desk Adapter-160W-Desk Download » 160 100-240 VAC Single L 6.9 x W 2.91 x H 1.65 inches Desktop
Adapter-200W-Desk Adapter-200W-Desk Download » 200 100-240 VAC Single L 7.2 x W 3.2 x H 1.6 inches
Switch Type: L 8 x 3.2 x 1.6 inches
Desktop
Adapter-250W-Desk Adapter-250W-Desk Download » 250 100-240 VAC Single Desktop
Adapter-300W-Desk Adapter-300W-Desk Download » 300 100-240 VAC Single L 10 x W 4.6 x H 1.8 inches Desktop

APTronic

Series Datasheet Power Input Range Outputs Dimensions Features
TA115/48-1,38 TA115/48-1,38 Download » 0 90 – 132 VAC 48 VDC Wallmount

Cincon

Series Datasheet Power Input Range Outputs Dimensions Features
TR500 TR500 Download » 6 90-264VAC Single 4.2V, 5.0V, 6.0V, 6.5V, 7.0V, 7.5V, 7.5V, 8V, 9V, 10V, 12V 2.835 x 2.047 x 1.378 inches
72.00 x 52.00 x 35.00mm
AC-DC Switching Adapter
TRG500 TRG500 Download » 6 90-264VAC Single 5.0V, 6.0V, 6.5V, 7.0V, 7.5V, 7.5V, 8V, 9V, 10V, 12V 2.835 x 2.047 x 1.378 inches
72.00 x 52.00 x 35.00mm
AC-DC Switching Adapter
TRG10R TRG10R Download » 10 90-264 VAC Single 2.8 x 1.8 x 1.4 inches AC-DC Switching Adapter
TR10R TR10R Download » 10 90-264VAC Single 3.3V, 5V, 6V, 7.5V, 9V, 12V, 13.6V, 15V, 18V, 24V 2.835 x 1.811 x 1.378 inches
72.00 x 46.00 x 35.00mm
AC-DC Switching Adapter
TR15 TR15 Download » 15 90-264VAC Single 5V, 6V, 7.5V, 9V, 12V, 13.6V, 15V, 18V, 24V 2.835 x 2.047 x 1.378 inches
72.00 x 52.00 x 35.00mm
AC-DC Switching Adapter
TRG15 TRG15 Download » 15 90-264 VAC Single 2.8 x 2.05 x 1.4 inches AC-DC Switching Adapter
TR15RA TR15RA Download » 15 90-264 VAC Single 3.2 x 1.9 x 1.7 inches AC-DC Switching Adapter
TR15RAM TR15RAM Download » 15 90-264 VAC Single 3.2 x 1.9 x 1.7 inches AC-DC Switching Adapter
TR20B TR20B Download » 20 90-264VAC Single 3.3V, 5V, 9V, 12V, 15V, 18V, 24V 4.331 x 1.969 x 1.181 inches
110.00 x 50.00 x 30.00mm
AC-DC Switching Adapter
TR25 TR25 Download » 25 100-240 VAC Single 3.2 x 2.0 x 2.2 inches AC-DC Switching Adapter
TRG25 TRG25 Download » 25 90-240 VAC Single 3.2 x 1.9 x 2.2 inches AC-DC Switching Adapter
TR25D TR25D Download » 25 90-264VAC Dual 5.197 x 2.283 x 1.181 inches
132.00 x 58.00 x 30.00mm
AC-DC Switching Adapter
TRG30R TRG30R Download » 30 90-264 VAC Single 4.234 x 2.267 x 1.319 inches
107.77 x 57.60 x 33.50mm
AC-DC Switching Adapter
TRG30RA TRG30RA Download » 30 90-264VAC Single 9V, 12V, 15V, 18V, 24V 4.278 x 2.440 x 1.445 inches
108.67 x 61.89 x 36.70mm
AC-DC Switching Adapter
TR30RAM TR30RAM Download » 30 90-264 VAC Single 4.3 x 2.4 x 1.4 inches AC-DC Medical Switching Adapter
TR30M TR30M Download » 30 90-264 VAC Single 4.3 x 2.0 x 1.2 inches AC-DC Switching Adapter
TR30P TR30P Download » 30 90-264 VAC Single 4.7 x 2.04 x 1.2 inches AC-DC POE Adapter
TR36 TR36 Download » 36 90-264VAC Single 5V, 9V, 12V, 13.5V, 15V, 18V, 24V, 48V 4.331 x 1.969 x 0.787 inches
110.00 x 50.00 x 20.00mm
AC-DC Switching Adapter
TRG36 TRG36 Download » 36 90-264 VAC Single 4.3 x 2.0 x 0.8 inches AC-DC Switching Adapter
TR45 TR45 Download » 45 90-264VAC Single 5V, 12V, 15V, 18V, 19, 24V, 48V 5.197 x 2.283 x 1.181 inches
132.00 x 58.00 x 30.00mm
AC-DC Switching Adapter
TRG45 TRG45 Download » 45 90-264 VAC Single 4.7 x 2.0 x 1.2 inches AC-DC Switching Adapter
TR60M TR60M Download » 60 90-264VAC Single 5.2 x 2.8 x 1.2 inches AC-DC Medical Switching Adapter
TR60A-POE-L TR60A-POE-L Download » 60 90-264VAC Single 48V 5.91 x 2.76 x 1.38 inches
150 x 70 x 35mm
AC-DC POE Adapter
TRG60A-POE-L TRG60A-POE-L Download » 60 90-264 VAC Single 5.9 x 2.7 x 1.4 inches AC-DC POE Adapter
TR70 TR70 Download » 70 90-264VAC Single 12V, 15V, 18V, 19V, 24V, 48V 5.197 x 2.283 x 1.181 inches
132.00 x 58.00 x 30.00mm
AC-DC Switching Adapter
TRG70 TRG70 Download » 70 90-264 VAC Single 5.2 x 2.3 x 1.2 inches AC-DC Switching Adapter
TRG70E TRG70E Download » 70 90-264 VAC Single 5.2 x 2.2 x 1.2 inches AC-DC Switching Adapter
TR100M TR100M Download » 100 90-264 VAC Single 5.6 x 2.3 x 1.5 inches Efficiency and Standby Power Meet Level V, Meets 2 MOPP
TRG100A TRG100A Download » 100 90-264 VAC Single 5.9 x 2.7 x 1.8 inches AC-DC Switching Adapter
TRG150A TRG150A Download » 150 90-264 VAC Single 7.08 x 2.91 x 1.61 inches AC-DC Switching Adapter
