Adapter Tech

Series Datasheet Power Input Range Outputs Dimensions Features
Adapter-18W-Open Frame Adapter-18W-Open Frame Download » 18 100-240 VAC Single L 3.7 x W 1.8 x H 1.06 inches Open Frame
Adapter-24W-Open Frame Adapter-24W-Open Frame Download » 24 100-240 VAC Single L 3.1 x W 1.7 x H 1.06 inches Open Frame
Adapter-Open Frame-40~65W Adapter-Open Frame-40~65W Download » 40 100~240V Single 9V, 12V, 15V, 18V, 19V, 20V, 24V, 48V 123x 53x 30mm Customer Design
Adapter-50W-Open Frame Adapter-50W-Open Frame Download » 50 100-240 VAC Single L 2.0 x W 4.0 x H 1.4 inches
U-Shaped: L 4.92 x W 2.12 x H 1.25 inches
Open Frame
Adapter-65W-Open Frame Adapter-65W-Open Frame Download » 50 100-240 VAC Single L 2.0 x W 4.0 x H 1.4 inches
U-Shaped: L 4.92 x W 2.12 x H 1.25 inches
Open Frame
Adapter-Open Frame-120W Adapter-Open Frame-120W Download » 120 100~240V Single 24V Customer Design
Adapter-120W-Open Frame Adapter-120W-Open Frame Download » 120 100-240 VAC Single L 5.0 x W 3.0 x H 1.4 inches Open Frame
Adapter-120W-Open Frame/Medical Adapter-120W-Open Frame/Medical Download » 120 100-240 VAC Single L 5.0 x W 3.0 x H 1.4 inches Open Frame/Medical
Adapter-130W-Open Frame Adapter-130W-Open Frame Download » 130 100-240 VAC Dual L 7.0 x W 4.25 x H 1.1 inches Open Frame/Medical
ATM130-F240 ATM130-F240 Download » 130 100 - 240VAC O/p voltage 24V- 5V O/P Current 5A - 2A L 178 x W 108 x H 28 (mm)(Ref) Low Power Consumptions & High Efficiency, 100 - 240VAC Universal Input, Requlated Output with Low Ripple Noise, Modified and Custom Design Available
Adapter-OpenFrame Adapter-OpenFrame Download » 144 100~240V/50~60Hz, 2A max. Multiple 5V, 12V, 24V 80x120x33mm Customer Design
Adapter-200W-Open Frame Adapter-200W-Open Frame Download » 200 100-240 VAC Single L 5.0 x W 3.0 x H 1.4 inches Open Frame
Adapter-210W-Open Frame Adapter-210W-Open Frame Download » 210 100-240 VAC Dual L 7.0 x W 4.25 x H 1.3 inches Open Frame/Medical

Series Datasheet Power Input Range Outputs Dimensions Features
German Medical Product Law (MPG) German Medical Product Law (MPG) Download » 0 230V - Version: 196 – 264 VAC; 110V - Version: 95 – 135 VAC 230V: 9V, 110V: 0-30V 85 x 100 x 50mm Chassis
Telephone Exchange 3192 Telephone Exchange 3192 Download » 0 20 – 60 VDC -5V, -12V, 5V, 12V 109.3 x 92.42mm Open Frame, Enclosed, U-Chassis
AUX-PSU AUX-PSU Download » 0 93 - 260 VAC 48V Open Frame
Banking Systems Banking Systems Download » 0 90 – 264 VAC The power supply provides multiple switchable DC-outputs, which can customized according to the specific requirement. 55mm–65mm x 240mm–400mm x 200–300mm Open Frame, Enclosed

Arch Electronics

Series Datasheet Power Input Range Outputs Dimensions Features
AES60O AES60O Download » 60 90-264 VAC or 120-370 VDC Single 4.1 x 2.05 x 1.0 In
103.9 x 52.1 x 25.4 mm
Open Frame
AES60U AES60U Download » 60 90-264 VAC or 120-370 VDC Single 4.13 x 2.28 x 1.5 In
105.0 x 58.0 x 38.1 mm
U Bracket
AES60E AES60E Download » 60 90-264 VAC or 120-370 VDC Single 4.13 x 2.28 x 1.5 In
105.0 x 58.0 x 38.1 mm
Enclosed Frame
SZA60O Series SZA60O Series Download » 60 90-264 VAC or 120-370 VDC Single 3.0 x 2.0 x 1.24 In
76.3 x 50.6 x 31.5mm
Open Frame Switching Power Supply, Universal Input: 90 - 264 VAC, Single Ouput , <0.3W No Load Input Power, 5 VDC to 48 VDC Output, 3000 VAC Input to Output Isolation, Ultra Compact Size, 3- Years Product Warranty
SZA60U Series SZA60U Series Download » 60 90-264 VAC or 120-370 VDC Single 3.15 x 2.26 x 1.5 In
80.0 x 57.5 x 38.0 mm
Open Frame Switching Power Supply, Universal Input: 90 - 264 VAC, Single Ouput , <0.3W No Load Input Power, 5 VDC to 48 VDC Output, 3000 VAC Input to Output Isolation, Ultra Compact Size, 3- Years Product Warranty
AQF100C AQF100C Download » 100 90-264 VAC or 120-370 VDC Single 4.1 x 2.05 x 0.98 In
103.9 x 52.1 x 25.0 mm
AC/DC Power Supply, Open Frame
AQF100O AQF100O Download » 100 90-264 VAC or 120-370 VDC Single 4.1 x 2.05 x 0.98 In
103.9 x 52.1 x 25.0 mm
AC/DC Power Supply, Open Frame
SZA100 Series SZA100 Series Download » 100 85- 265 Single Output 4.05 x 2.04 x 1.36 Inches ( 102.75 x 51.7 x 34.5 mm ) Tolerance ±0.5mm Open Frame Switching Power Supply, Universal Input : 85-265 VAC, Single Output, <0.3w No Load Input Power (48Vout <0.5W), 12VDC to 48 VDC Output, 3000 VAC input to Output Isolation, Ultra Compact Size, 3- Years Prduct Warranty
AQF120O AQF120O Download » 120 90-264 VAC or 100-370 VDC Single 5.0 x 3.0 x 1.16 In
127.0 x 76.2 x 29.5 mm
Open Frame
AQF120U AQF120U Download » 120 90-264 VAC or 100-370 VDC Single 5.0 x 3.24 x 1.5 In
127.0 x 82.2 x 38.1 mm
U Bracket
AQF120E AQF120E Download » 120 90-264 VAC or 100-370 VDC Single 5.0 x 3.24 x 1.5 In
127.0 x 82.2 x 38.1 mm
Enclosed Frame
AQF160 AQF160 Download » 160 90-264 VAC or 120-370 VDC Single 4.1 x 2.05 x 1.42 In
103.9 x 52.1 x 29.0 mm
Open Frame
AQF120E-180W AQF120E-180W Download » 180 90-264 VAC or 100-370 VDC Single 5.0 x 3.24 x 1.5 In
127.0 x 82.2 x 38.1 mm
Enclosed Frame
AQF120U-180W AQF120U-180W Download » 180 90-264 90-264 VAC or 120-370 VDC (80-274 VAC or 110-390 VDC with Derating)VAC or 100-370 VDC Single 5.0 x 3.24 x 1.5 In
127.0 x 82.2 x 38.1 mm
U Bracket
AQF240U AQF240U Download » 240 90-264 VAC or 120-370 VDC Single 5S:6.0 x 4.18 x 1.46 In, 150.0 x 106.0 x 35.0 mm
Others:6.0 x 4.18 x 1.38 In, 150.0 x 106.0 x 35.0 mm
AC-DC U Bracket
AQF240E AQF240E Download » 240 90-264 VAC or 120-370 VDC Single 6.0 x 4.18 x 1.38 In
150.0 x 106.0 x 35.0 mm
AC-DC Enclosed Frame
AQF360U AQF360U Download » 360 90-264 VAC or 120-370 VDC Single 6.8 x 3.2 x 1.5 In
172.7 x 81.3 x 38.0 mm
AC-DC U Bracket
AQF360E AQF360E Download » 360 90-264 VAC or 120-370 VDC Single 6.8 x 3.2 x 2.1 In
172.7 x 81.3 x 53.3 mm
AC-DC Enclosed Frame
AQF360F AQF360F Download » 360 90-264 VAC or 120-370 VDC Single 7.8 x 3.2 x 1.57 In
197.7 x 81.3 x 40.0 mm
AC-DC Enclosed Frame
AQFC480U AQFC480U Download » 480 90-264 VAC or 120-370 VDC Single -12V / 24V / 36V / 48V 7.0 x 4.2 x 1.78 Inches (177.8 x 106.5 x 45.0 mm ) Tolerance ±0.5 mm AC/DC Power Supply U Bracket
AQFC480E AQFC480E Download » 480 90-264 VAC or 120-370 VDC Single 7.0 x 4.2 x 2.37 In
177.8 x 106.5 x 60.3 mm
AC/DC Power Supply Enclosed
AQFV480E AQFV480E Download » 480 90-264 VAC or 120-370 VDC Single 7.0 x 4.2 x 2.37 In
177.8 x 106.5 x 60.3 mm
AC/DC Power Supply Enclosed
AQFC480F AQFC480F Download » 480 90-264 VAC or 120-370 VDC Single 7.98 x 4.2 x 1.78 In
202.8 x 106.5 x 45.0 mm
AC/DC Power Supply Enclosed
AQFV480F AQFV480F Download » 480 90-264 VAC or 120-370 VDC Single 7.98 x 4.2 x 1.78 In
202.8 x 106.5 x 45.0 mm
AC/DC Power Supply Enclosed
AQF600 AQF600 Download » 600 90-264 VAC or 120-370 VDC Single 9.0 x 4.13 x 1.72 Inches (228.5 x 105 x 44 mm) AC/DC Power Supply Enclosed

Cincon

Series Datasheet Power Input Range Outputs Dimensions Features
CFM05 CFM05 Download » 5 85-264 VAC Single 2.165 x 1.378 x 0.827 inches AC-DC Converter Open Frame
CFM10 CFM10 Download » 10 85-264 VAC Single 2.599 x 1.772 x 0.906 inches Open Frame, PCB Mountable
CFM15 CFM15 Download » 15 85-264 VAC Single 2.752 x 1.890 x 0.906 inches Open Frame, PCB Mountable
CFM21 CFM21 Download » 20 90-264 VAC Single 2.4 x 1.6 x 0.8 inches AC-DC Converter Open Frame
TRG21 TRG21 Download » 20 90-264 VAC Single 3.0 x 1.8 x 0.9 inches AC-DC Switching Adaptor
CFM20 CFM20 Download » 20 85-264 VAC Single 3.501 x 2.000 x 0.906 inches AC-DC Converter Open Frame
TRG30RV TRG30RV Download » 30 90-264 VAC Single 2.24 x 2.7 x 1.3 inches AC-DC Switching Adaptor
TRG30RA TRG30RA Download » 30 90-264 VAC Single 4.3 x 2.4 x 1.4 inches AC-DC Switching Adaptor
CFM40C CFM40C Download » 40 90-264 VAC Single 5.433x2.323x1.894 inches AC-DC Enclosed/Din Rail Mountable
CFM40M CFM40M Download » 40 90-264 VAC Single 3.0 x 2.0 x 0.9 inches AC-DC Converter Open Frame
CFM40 CFM40 Download » 40 90-264 VAC Single 4.0 x2.0 x 1.2 inches (open)
4.7 x2.4 x 1.6 inches (w/ cover)
AC-DC Converter Open Frame
CFM40D/T CFM40D/T Download » 40 90-264 VAC Dual, Triple 4.0 x 2.0 x 1.1 inches
4.7 x 2.5 x 1.8 inches (w/ cover)
AC-DC Converter Open Frame
CFM60 CFM60 Download » 60 90-264 VAC Single 4.0 x2.0 x 1.2 inches (open)
4.7 x2.4 x 1.6 inches (w/ cover)
AC-DC Converter Open Frame
CFM60M CFM60M Download » 60 90-264 VAC Single 4.0 x 2.0 x 1.1 inches AC-DC Converter Open Frame
CFM60M CFM60M Download » 60 90-264 VAC Single 4.0 x 2.0 x 1.1 inches Open Frame, Medical Power Supply
CFM60T CFM60T Download » 60 90-264 VAC Triple 4.00 x 2.00 x 1.26 inches AC-DC Converter Open Frame
CFM80S CFM80S Download » 80 90-264 VAC Single 4.0 x 2.0 x 1.07 inches AC-DC Converter Open Frame
CFM101S CFM101S Download » 100 90-264 VAC Single 4.0 x 2.0 x 1.1 inches AC-DC Converter Open Frame
CFM100C CFM100C Download » 100 90-264 VAC Single 5.4 x 2.3 x 1.9 inches AC-DC Enclosed Power Supply, Can Be Installed on a DIN Rail TS-35/7.5 or 15
CFM100M CFM100M Download » 100 90-264 VAC Single 5.000 x 3.000 x 1.050 inches AC-DC Converter Open Frame
CFM150M CFM150M Download » 150 90-264 VAC Single 5.0 x 3.0 x 1.1 inches AC-DC Converter Open Frame
CFM201S CFM201S Download » 200 90-264 VAC Single 5.0 x 3.0 x 1.4 inches
5.4 x 3.5 x 2.0 inches (w/ cover)
AC-DC Converter Open Frame
CFM200S CFM200S Download » 200 90-264VAC Single 3.3V, 5V, 9V, 12V, 15V, 18V, 24V, 28V, 30V, 36V, 48V 5.91 x 3.94 x 1.5 inches
150 x 100 x 38.1mm
AC-DC Converter U Frame
CFM351M CFM351M Download » 350 90-264 VAC Single 5.0 x 3.0 x 1.5 inches AC-DC Converter Open Frame
CFM351M CFM351M Download » 350 90 - 264 VAC Single 6.500 x 4.000 x 1.516 inches AC/DC Power Supply, Open Frame / Enclosed
CFM350S CFM350S Download » 350 90-264VAC Single 9.26 x 4.00 x 1.59 inches AC-DC Converter U Frame
CFM361S CFM361S Download » 360 90 - 264VAC Single 5.390 x 3.425 x 1.697 inches AC/DC Power Supply, Open Frame / Enclosed / Cooling Baseplate Option
TRG500V TRG500V Download » 500 90-264 VAC Single 2.8 x 2.0 x 1.4 inches AC-DC Switching Adaptor
CFM750E CFM750E Download » 750 90-264 VAC Single 11.02 x 4.00 x 1.65 inches AC-DC Converter Enclosed
CFM1600H CFM1600H Download » 1600 90-264 VAC Single 11.52 x 5.54 x 1.63 inches AC-DC Converter Enclosed

Cotek

Series Datasheet Power Input Range Outputs Dimensions Features
MP05 Series MP05 Series Download » 5 85-264 VAC, 125-373 VDC Single 2.3 x 1.8 x 0.75 Green Design, No-Load Power Consumption < 0.3W, Universal AC Input/Full Range, Medical Safety Approved
MP10 Series MP10 Series Download » 10 85-264 VAC, 125-373 VDC Single 2.5 x 1.9 x 0.9 inches Green Design, No-Load Power Consumption < 0.3W, Universal AC Input/Full Range, Medical Safety Approved
MP15 Series MP15 Series Download » 15 85-264 VAC, 125-373 VDC Single 2.75 x 1.9 x 0.9 inches Green Design, No-Load Power Consumption < 0.3W, Universal AC Input/Full Range, Medical Safety Approved
MP20 Series MP20 Series Download » 20 85-264 VAC, 125-373 VDC Single 3.5 x 2.0 x 0.75 inches Green Design, No-Load Power Consumption < 0.3W, Universal AC Input/Full Range, Medical Safety Approved
GE25 Series GE25 Series Download » 25 88-264 VAC, 125-373 VDC Single 3.11 x 2.0 x 1.1 inches Green design, No-load power consumption <0.5W, Cooling by free air convection, High efficiency, long life and high reliability
GE35 Series GE35 Series Download » 35 88-264 VAC, 125-373 VDC Single 3.9 x 3.2 x 1.4 inches Green design, No-load power consumption <0.5W, Cooling by free air convection, High efficiency, long life and high reliability
MP45 Series MP45 Series Download » 45 90-264 VAC, 127-370 VAC Single 2.0 x 1.14 x 4.0 inches Green Design, No-Load Power Consumption < 0.5W, Universal AC Input/Full Range, Medical Safety Approved
MP45 Series Dual Output MP45 Series Dual Output Download » 45 90-264 VAC, 127-370 VAC Dual 2.0 x 1.14 x 4.0 inches Green Design, No-Load Power Consumption < 0.5W, Universal AC Input/Full Range, Medical Safety Approved
GE50 Series GE50 Series Download » 50 88-264 VAC, 125-373 VDC Single 3.9 x 3.2 x 1.4 inches Green design, No-load power consumption <0.5W, Cooling by free air convection, High efficiency, long life and high reliability
MP60 Series MP60 Series Download » 60 90-264 VAC, 127-370 VAC Single 4.0 x 2.0 x 1.14 Green Design, No-Load Power Consumption < 0.5W, Universal AC Input/Full Range, Medical Safety Approved
MP60 Series Dual Output MP60 Series Dual Output Download » 60 90-264 VAC, 127-370 VAC Dual 4.0 x 2.0 x 1.14 Green Design, No-Load Power Consumption < 0.5W, Universal AC Input/Full Range, Medical Safety Approved
QP75 Series QP75 Series Download » 75 90-264 VAC, 127-370 VAC Dual 5.07 x 3.8 x 1.5 inches Universal AC Input/Full Range, Auto Switch When Power Off, Built-In Constant Current Limiting Circuit
QE75 Series QE75 Series Download » 75 90-264 VAC, 127-373 VAC Dual 5.07 x 3.8 x 1.5 inches Universal AC Input/Full Range, Auto Switch When Power Off, Built-In Constant Current Limiting Circuit
GE75 Series GE75 Series Download » 75 88-264 VAC, 125-373 VDC Single 0.2 x 0.15 x 0.06 inches Green design, No-load power consumption <0.5W, Cooling by free air convection, High efficiency, long life and high reliability

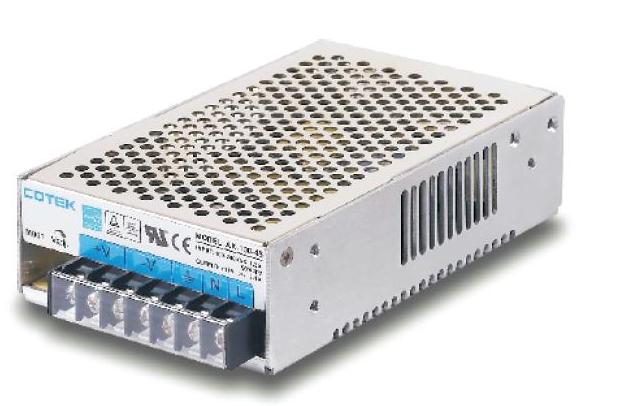

AK75 Series AK75 Series Download » 75 90-264 VAC, 127-370 VDC Single 6.18 x 3.86 x 1.65 inches Green Design, No-Load Power Consumption <0.7W, Cooling By Free Air Convection, High Efficiency, Long Life and High Reliability
QP100 Series QP100 Series Download » 100 90-264 VAC, 127-370 VAC Dual 5.07 x 3.8 x 1.5 inches Universal AC Input/Full Range, Auto Switch When Power Off, Built-In Constant Current Limiting Circuit
QE100 Series QE100 Series Download » 100 90-264 VAC, 127-373 VAC Dual 5.07 x 3.8 x 1.5 inches Universal AC Input/Full Range, Auto Switch When Power Off, Built-In Constant Current Limiting Circuit
GE100 Series GE100 Series Download » 100 88-264 VAC, 125-373 VDC Single 5.07 x 3.9 x 1.5 inches Green design, No-load power consumption <0.5W, Cooling by free air convection, High efficiency, long life and high reliability
AK100 Series AK100 Series Download » 100 90-264 VAC, 127-370 VDC Single 6.18 x 3.86 x 1.65 inches Green Design, No-Load Power Consumption <0.5W, Cooling By Free Air Convection, High Efficiency, Long Life and High Reliability
AP150 Series AP150 Series Download » 150 90-264 VAC, 127-370 VDC Single 2.4 x 1.0 x 6.9 inches Universal AC Input/Full Range, Built In Active PFC Function. PF > 0.90, No Load Power Consumption < 1W, User Adjustable Output Voltage and Constant Current Level
MP150 Series MP150 Series Download » 150 90-264 VAC, 127-373 VAC Single 2.0 x 1.26 x 4.0 inches Universal AC Input/Full Range with Act PFC, Medical Safety Approvals, High Operation Temperature
UP150 Series UP150 Series Download » 150 90-264 VAC, 127-370 VAC Single 7.8 x 2.7 x 1.3 inches Universal AC Input/Full Range, Built-In Active PFC Function, PF > 0.9, User Adjustable Output Voltage/Constant Current Level
GE150 Series GE150 Series Download » 150 88-264 VAC, 125-373 VDC Single 7.04 x 3.9 x 1.5 inches Green design, No-load power consumption <1W, Cooling by free air convection, High efficiency, long life and high reliability
AK150 Series AK150 Series Download » 150 90-264 VAC, 127-370 VDC Single 7.76 x 4.86 x 1.65 inches Green Design, No-Load Power Consumption <0.7W, Cooling By Free Air Convection, High Efficiency, Long Life and High Reliability
QE155 Series QE155 Series Download » 155 90-264 VAC, 127-373 VAC Dual 5.07 x 3.8 x 1.5 inches Universal AC Input/Full Range, Auto Switch When Power Off, Built-In Constant Current Limiting Circuit
UP200 Series UP200 Series Download » 200 90-264 VAC, 127-370 VAC Single 8.0 x 4.0 x 1.5 inches Universal AC Input/Full Range, High Operation Temperature, Power OK Signal, U-Bracket Low Profile
AK200 Series AK200 Series Download » 200 90-264 VAC, 127-370 VDC Single 7.75 x 3.8 x 1.7 inches Green Design, No-Load Power Consumption <0.7W, Cooling By Free Air Convection, High Efficiency, Long Life and High Reliability
MP250 Series MP250 Series Download » 250 90-264 VAC, 127-373 VAC Single 3.0 x 1.43 x 5.0 inches Universal AC Input/Full Range with Act PFC, Medical Safety Approvals, High Operation Temperature
MP-350 Series MP-350 Series Download » 350 90-264 VAC, 127-373 VAC Single 3.0 x 1.56 x 5.0 inches Universal AC Input/Full Range with Act PFC, Medical Safety Approvals, High Operation Temperature
UP350 Series UP350 Series Download » 350 90-264 VAC, 127-370 VAC Single 9.1 x 4.0 x 1.5 inches Universal AC Input/Full Range, High Operation Temperature, Power OK Signal, U-Bracket Low Profile
AK350 Series AK350 Series Download » 350 90-264 VAC, 127-370 VDC Single 4.134 x 1.614 x 7.835 inches Universal AC Input/Full Range, Built In Active PFC Function. PF > 0.90, Constant Current Limit, Remote ON/OFF, Remote Sense Function
MP-450 Series MP-450 Series Download » 450 90-264 VAC, 127-373 VAC Single 4.0 x 1.56 x 7.0 inches Universal AC Input/Full Range with Act PFC, Medical Safety Approvals, High Operation Temperature
AK450 Series AK450 Series Download » 450 90-264 VAC, 127-370 VDC Single 4.134 x 1.614 x 7.835 inches Universal AC Input/Full Range, Built In Active PFC Function. PF > 0.90, Constant Current Limit, Remote ON/OFF, Remote Sense Function
UP500 Series UP500 Series Download » 500 90-264 VAC, 127-370 VAC Single 10.0 x 5.0 x 1.5 inches Universal AC Input/Full Range, High Operation Temperature, Power OK Signal, U-Bracket Low Profile
600S-P Series 600S-P Series Download » 600 180 - 260 VAC, 260 - 370 VDC Single 11.4 x 5.0 x 3.0 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
600S-N Series 600S-N Series Download » 600 90 - 130 VAC, 180 - 260 VDC Single 11.4 x 5.0 x 2.7 High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
600U Series 600U Series Download » 600 180-260VAC, 260-370VAC Single 11.9 x 4.1 x 2.5 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
AK650 Series AK650 Series Download » 650 90-264 VAC, 127-370 VDC Single 5.000 x 1.610 x 9.803 inches Universal AC Input with Active PFC, Programmable Output Voltage/Current, Forced Current Sharing At Parallel Operation
AE800 Series AE800 Series Download » 800 90-264 VAC, 127-370 VDC Single 5.0 x 1.6 x 9.8 inches Universal AC Input/Full Range, Programmable Output Voltage/Current, Power OK Signal, Forced Current Sharing at Parallel Operation
800S-P Series 800S-P Series Download » 800 180 - 260 VAC, 260 - 370 VDC Single 11.4 x 5.0 x 3.0 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
800S-N Series 800S-N Series Download » 800 90 - 130 VAC, 180 - 260 VDC Single 11.4 x 5.0 x 2.7 High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
AK1000 Series AK1000 Series Download » 1000 90-264 VAC, 127-370 VDC Single 11.14 x 5.00 x 1.61 inches Universal AC Input with Active PFC, Programmable Output Voltage/Current, Forced Current Sharing At Parallel Operation
1K2S-P Series 1K2S-P Series Download » 1200 180 - 260 VAC, 260 - 370 VDC Single 11.4 x 4.7 x 5.2 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
1K2S-N Series 1K2S-N Series Download » 1200 90 - 130 VAC, 180 - 260 VDC Single 11.4 x 5.0 x 5.0 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
ME1200 Series ME1200 Series Download » 1200 90-264 VAC, 127-370 VAC Single 6.3 x 5.0 x 2.5 inches Universal AC Input with Active PFC, Programmable Output Voltage/Current, Forced Current Sharing At Parallel Operation
U1200 Series U1200 Series Download » 1200 180-260VAC, 260-370VDC Single 11.4 x 8.1 x 2.5 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
AE1500 Series AE1500 Series Download » 1500 90-264 VAC, 127-370 VDC Single 5.0 x 2.5 x 11.0 inches Universal AC Input/Full Range, Programmable Output Voltage/Current, Power OK Signal, Forced Current Sharing at Parallel Operation
1K5S-P Series 1K5S-P Series Download » 1500 180 - 260 VAC, 260 - 370 VDC Single 11.4 x 4.7 x 5.2 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
1K5S-N Series 1K5S-N Series Download » 1500 90 - 130 VAC, 180 - 260 VDC Single 11.4 x 5.0 x 5.0 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
AK1500 Series AK1500 Series Download » 1500 90-264 VAC, 127-370 VDC Single 11.02 x 5.00 x 2.50 inches Universal AC Input with Active PFC, Programmable Output Voltage/Current, Forced Current Sharing At Parallel Operation
U1500 Series U1500 Series Download » 1500 180-260VAC, 260-370VDC Single 11.4 x 8.1 x 2.5 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
2K0S-P Series 2K0S-P Series Download » 2000 180 - 260 VAC, 260 - 370 VDC Single 12.6 x 8.3 x 4.9 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
2K0S-N Series 2K0S-N Series Download » 2000 90 - 130 VAC, 180 - 260 VDC Single 12.6 x 8.3 x 5.3 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
2K4S-P Series 2K4S-P Series Download » 2400 180 - 260 VAC, 260 - 370 VDC Single 12.6 x 8.3 x 4.9 inches High Reliability and Low Ripple Noise, Built-in ON/OFF Control, Programmable Output Voltage, Forced Current Sharing at Operation
AE3000 Series AE3000 Series Download » 3000 90-264 VAC, 127-370 VDC Single 14.04 x 5.0 x 5.0 inches Universal AC Input/Full Range, Programmable Output Voltage/Current, Power OK Signal, Forced Current Sharing at Parallel Operation
AEK3000 Series AEK3000 Series Download » 3000 90-264 VAC, 127-370 VDC Single 6.7 x 2.5 x 11.0 inches Universal AC Input/Full Range, Programmable Output Voltage/Current, Power OK Signal, Forced Current Sharing at Parallel Operation
AK3000 Series AK3000 Series Download » 3000 90-264 VAC, 127-370 VDC Single 5.000 x 5.000 x 12.01 inches Universal AC Input/Full Range, Programmable Output Voltage/Current, Power OK Signal, Forced Current Sharing at Parallel Operation

Integrated Power Designs

Series Datasheet Power Input Range Outputs Dimensions Features
SRP-25 SRP-25 Download » 25 85-264 VAC Single, Dual or Triple 2.25 x 4.0 x 0.96 inches Open Frame
SRP-35A SRP-35A Download » 30 85-264 VAC Single, Dual, Triple or Quadruple 3"x 6"x 2" Enclosed
SRP-40A SRP-40A Download » 40 85-264 VAC Sinlge, Dual, Triple, or Quadruple 2.50 x 4.25 x 1.2 inches Open Frame or Chassis/Cover
GRN-45M Series GRN-45M Series Download » 45 85-264 VAC Sinlge, Dual, Triple, or Quadruple 2.5 x 4.25 x 1.0 inches U Bracket or Chassis/Cover
SRW-45 SRW-45 Download » 45 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3 x 5 x 1.25 inches Open Frame or Chassis/Cover
GRN-60S Series GRN-60S Series Download » 60 85-264 VAC Single 2.0 x 3.0 x 1.0 inches Enclosed
SRW-65 SRW-65 Download » 65 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4 x 6 x 1.1 inches Open Frame or Chassis/Cover
REL-70 REL-70 Download » 70 85-264 VAC Single, dual, Triple, or Quadruple 2.5 x 4.5 x 1.2 inches Open Frame or Chassis/Cover
GRN-80S Series GRN-80S Series Download » 80 85-264 VAC Single 2.5 x 4.25 x 1.0 inches Enclosed
GRN-80M Series GRN-80M Series Download » 80 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3.0 x 5.0 x 1.0 inches U Bracket or Chassis/Cover
SRW-100 SRW-100 Download » 100 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3.3 x 5 x 1.5 inches Open Frame or Chassis/Cover
NXT-100 NXT-100 Download » 100 85-264 VAC Single 2.5 x 4.5 x 1 inches Open Frame or Chassis/Cover
GRN-110M Series GRN-110M Series Download » 110 85-264 VAC Sinlge, Dual, Triple, or Quadruple 3.0 x 5.0 x 1.0 inches U Bracket or Chassis/Cover
GRN-110S Series GRN-110S Series Download » 110 85-264 VAC Single 3.0 x 5.0 x 1.25 inches Enclosed
REL-110 REL-110 Download » 110 85-264 VAC Single, Dual, Triple, or Quadruple 3 x 5 x 1.3 inches Open Frame or Chassis/Cover
SRW-115 SRW-115 Download » 115 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4.25 x 7 x 1.25 inches Open Frame or Chassis/Cover
REL-150 REL-150 Download » 150 85-264 VAC Single, Dual, Triple, or Quadruple 4.2 x 7 x 1.5 inches Open Frame or Chassis/Cover
CE-150 CE-150 Download » 150 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4.0 x 7.0 x 1.75 inches U Bracket or Chassis/Cover
NXT-175 NXT-175 Download » 175 85-264 VAC Single 3 x 5 x 1.25 inches Open Frame or Chassis/Cover
REL-185 REL-185 Download » 185 85-264 VAC Single, Dual, Triple or Quadruple 4.2 x 7 x 1.5 inches Open Frame or Chassis/Cover
CE-225 CE-225 Download » 225 85-264 VAC Single, Dual, Triple or Quadruple 4.75 x 8.0 x 2.0 inches U Bracket
NXT-225 NXT-225 Download » 225 85-264 VAC Single 3.3x 5x 1.5 inches Open Frame or Chassis/Cover
CE-300 CE-300 Download » 300 85-264 VAC Sinlge, Dual, Triple, or Quadruple 4.9x 8.5x 1.95 inches Enclosed
NXT-325 NXT-325 Download » 325 85-264 VAC Single 3.9 x 6 x 1.5 mm Open Frame
NXT-400 NXT-400 Download » 400 85-264 VAC Single 3.9x 8x 1.5 inches Open Frame or Chassis/Cover
AQFV480U AQFV480U Download » 480 90-264 VAC or 120-370 VDC Single 7 x 4.2 x 1.78 in
177.8 x 106.5 x 45.0 mm )
AC/DC Open Power Supply
